76mm (3″) + 102mm (4″) Hinge Jig Router Template for Door and Door Frame

Price range: £14.99 through £19.99

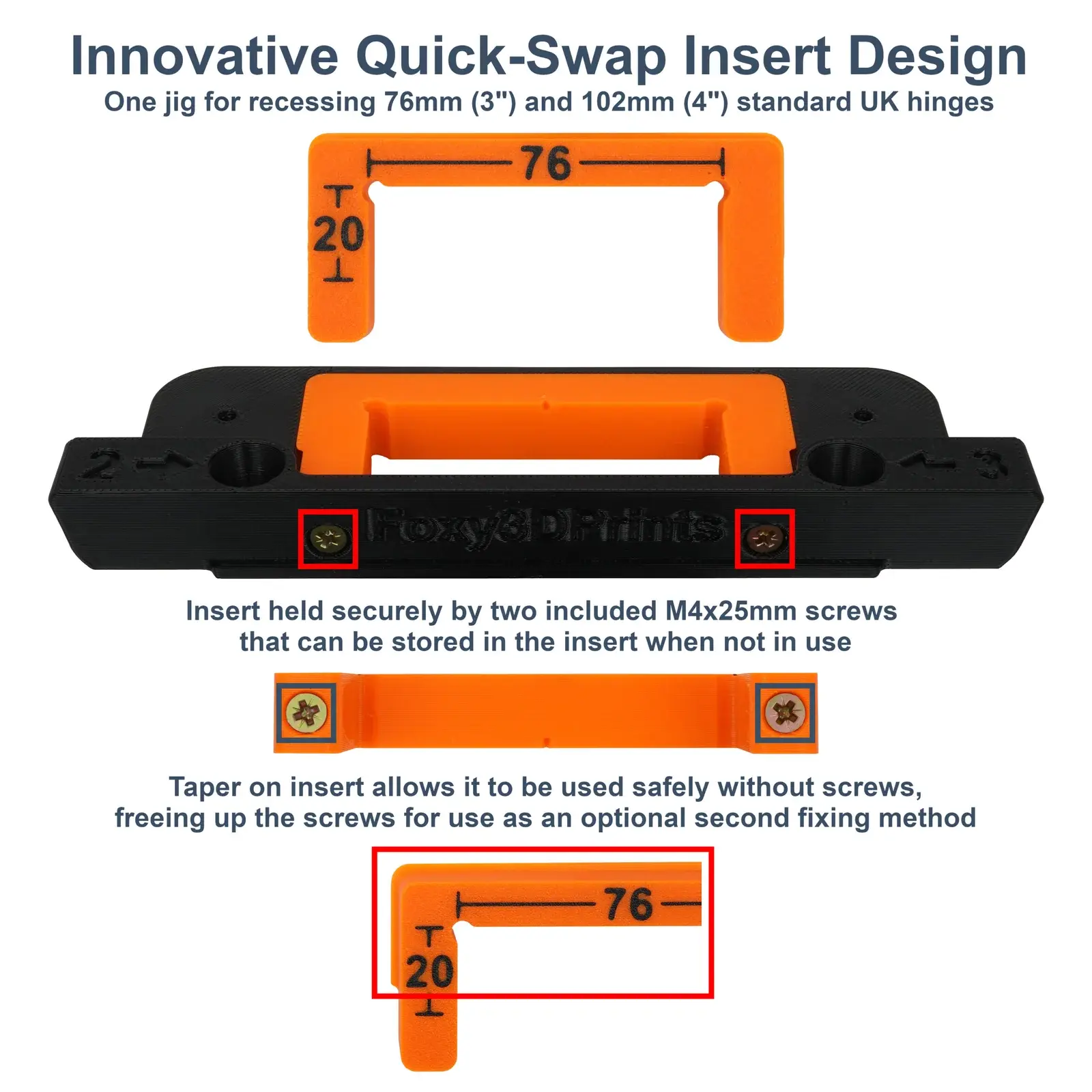

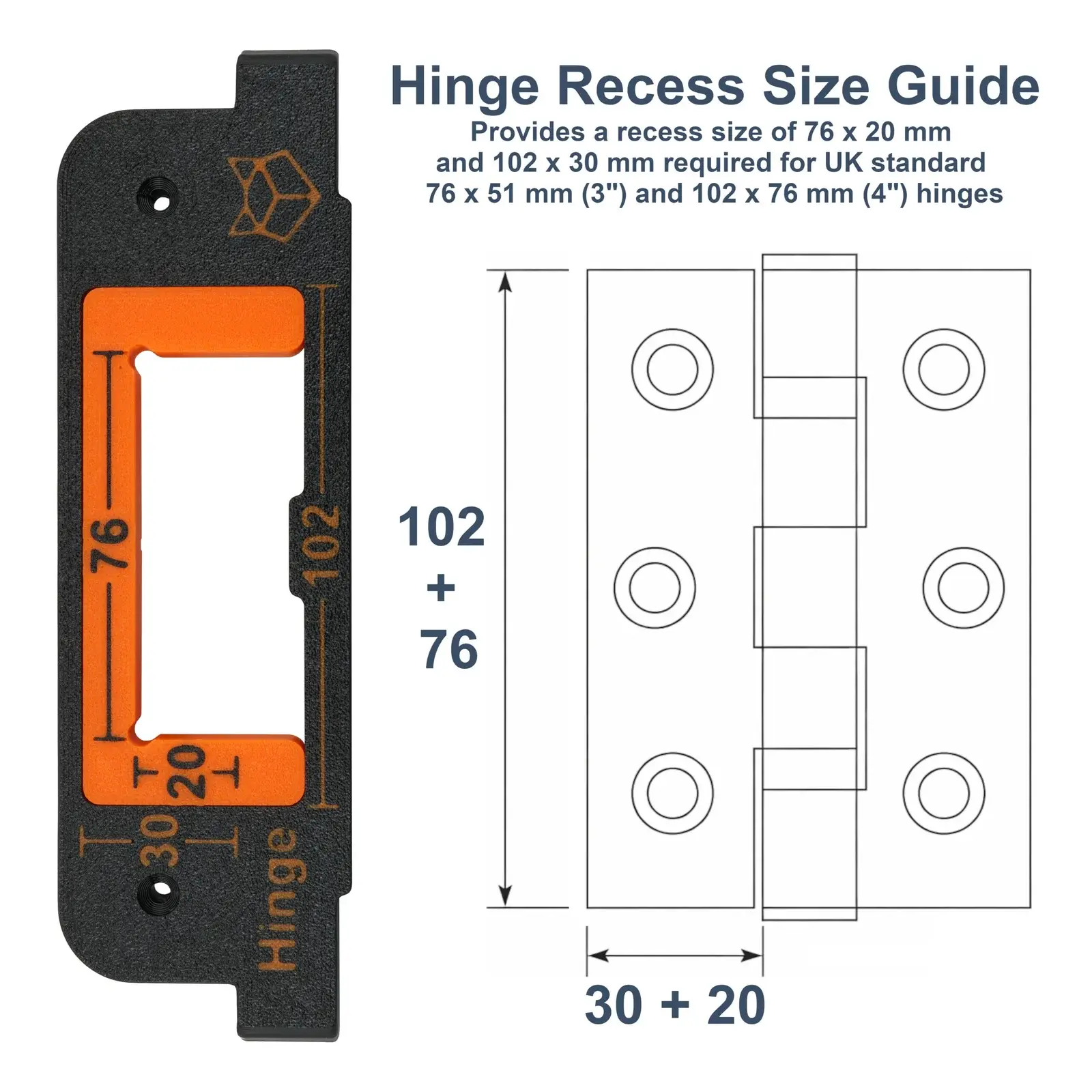

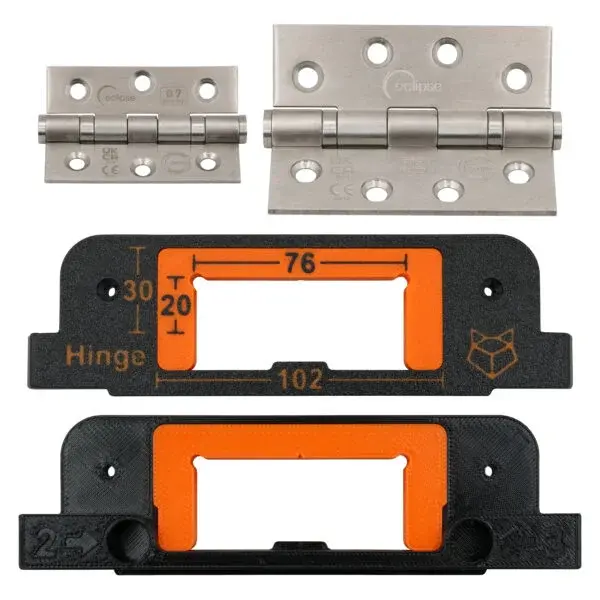

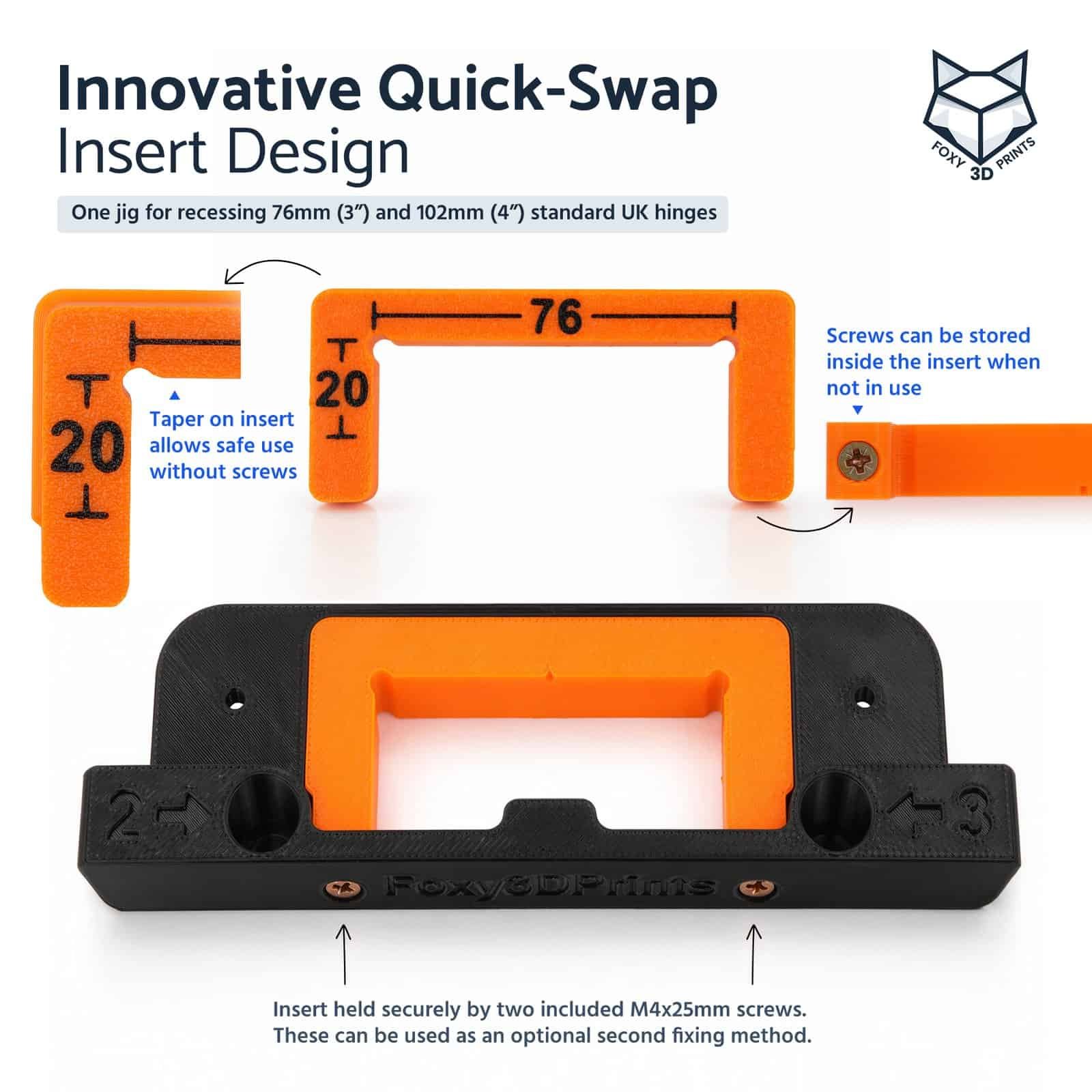

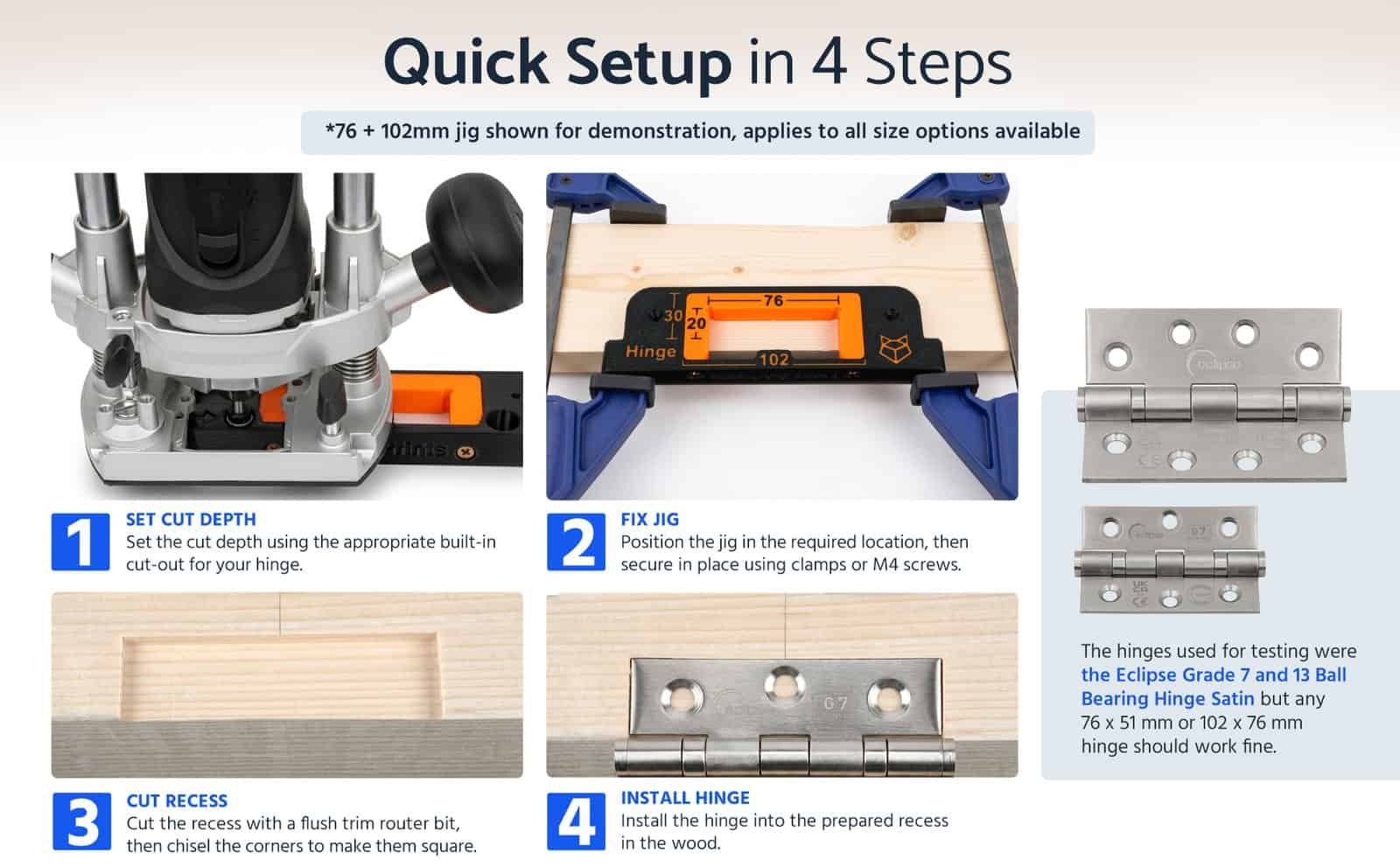

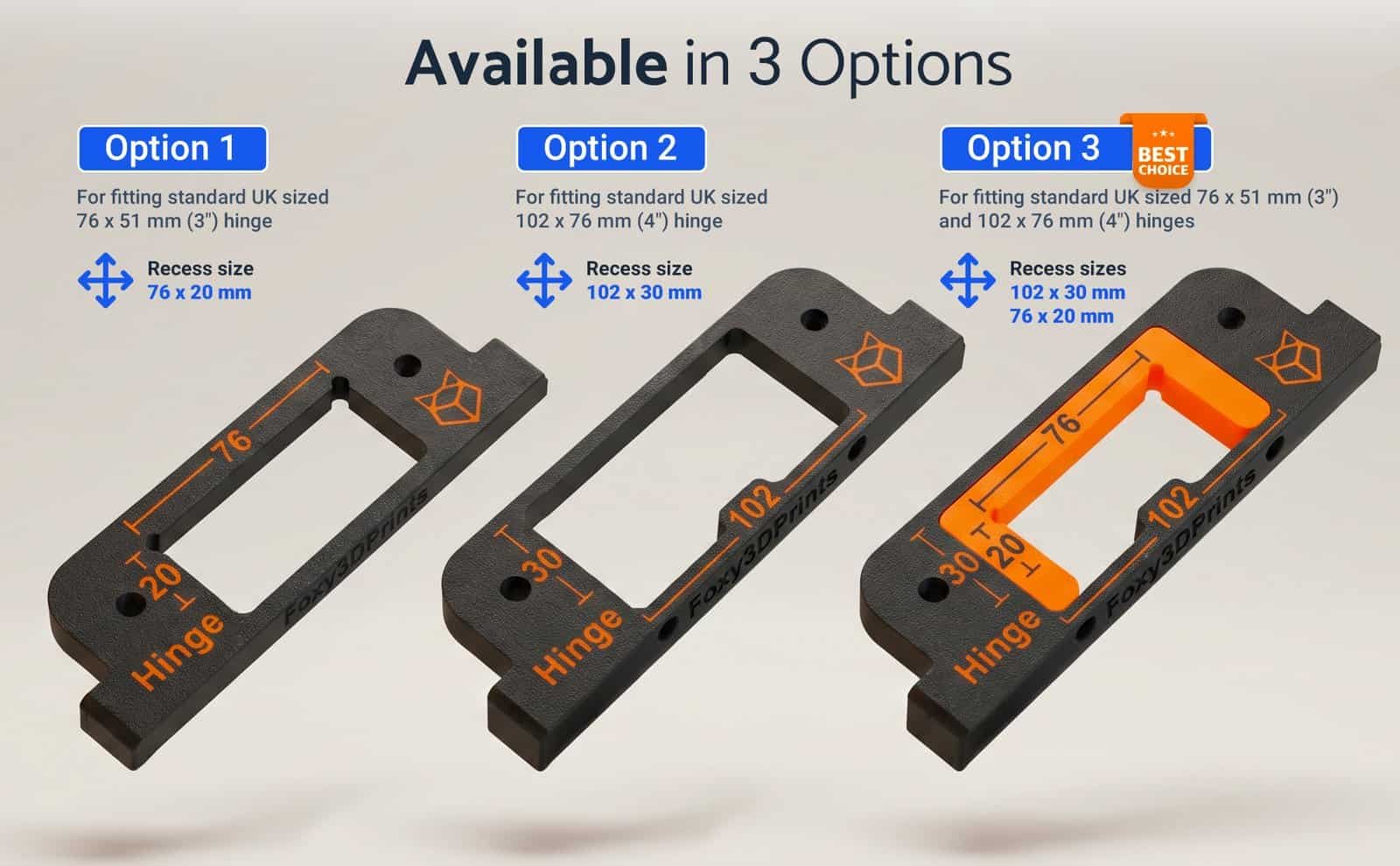

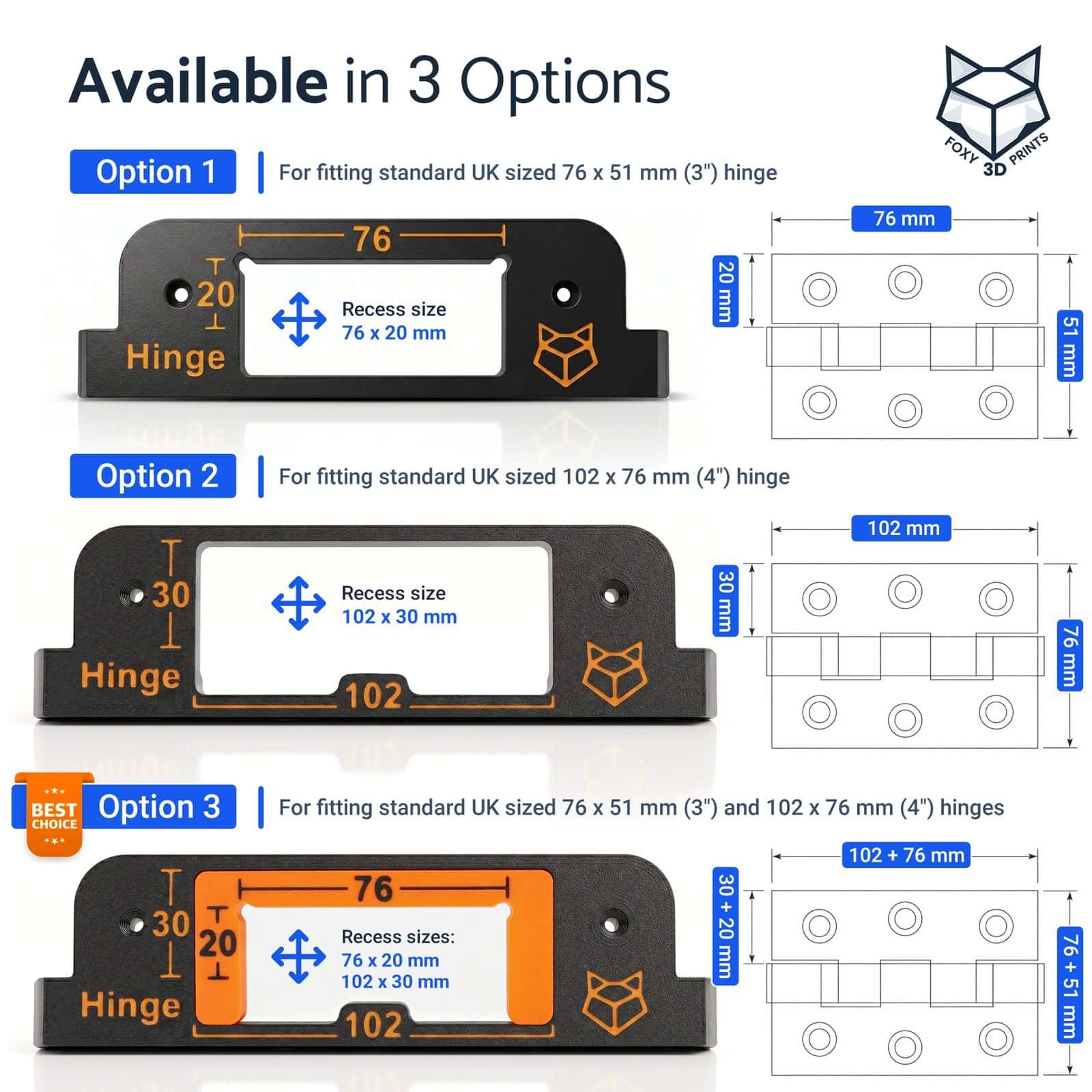

Effortless Repeatable Professional Finish – Provides a quick, simple solution for fitting standard UK sized 76 x 51 mm (3″) and 102 x 76 mm (4″) hinges (recess size 76 x 20 mm and 102 x 30 mm). The hinges used for testing were the eclipse “Grade 7 Ball Bearing Hinge Satin” and “Grade 13 Ball Bearing Fire Door Hinge Satin” available from Toolstation (product codes 25938 and 73733). Any 76x51mm or 102x76mm hinge should work fine.

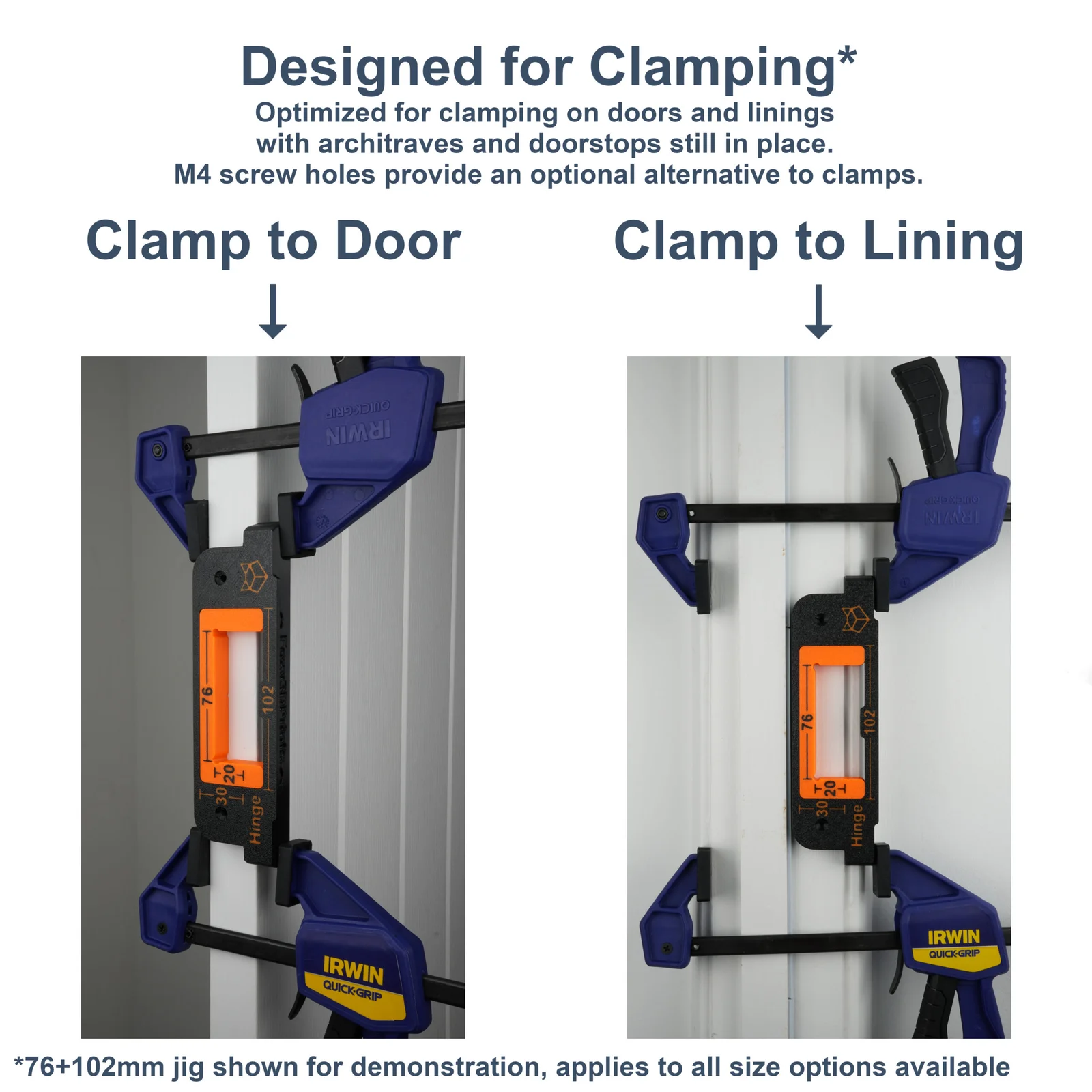

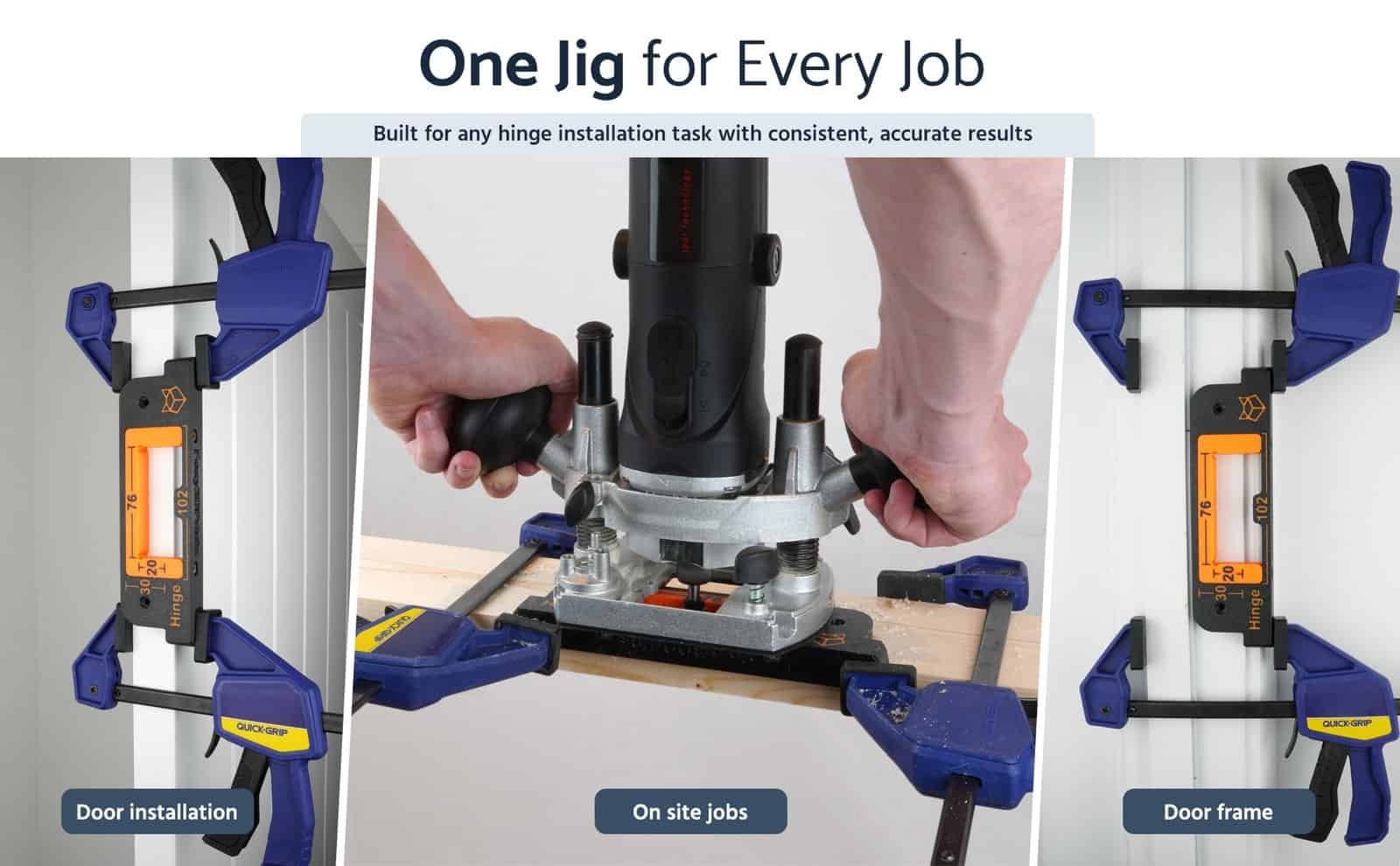

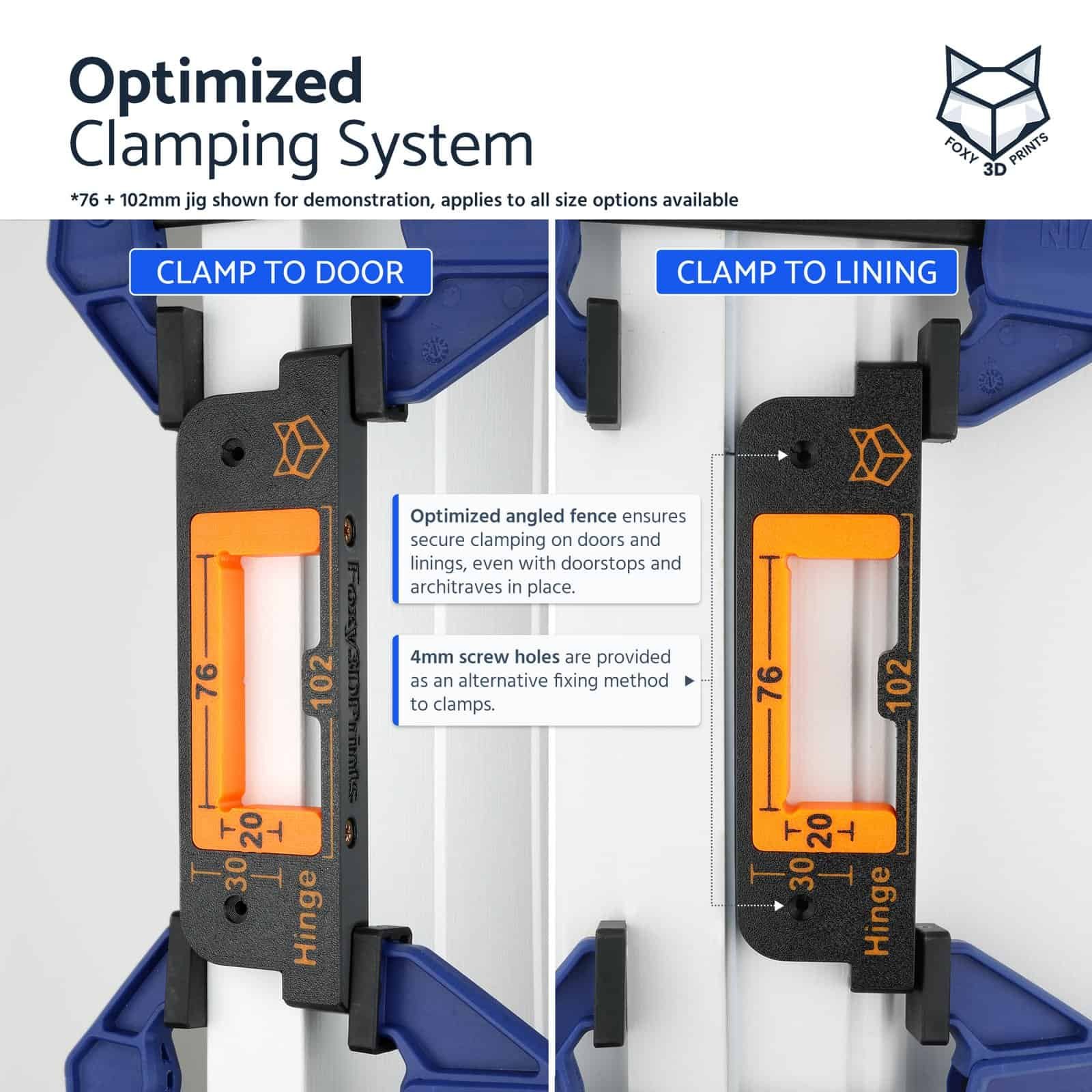

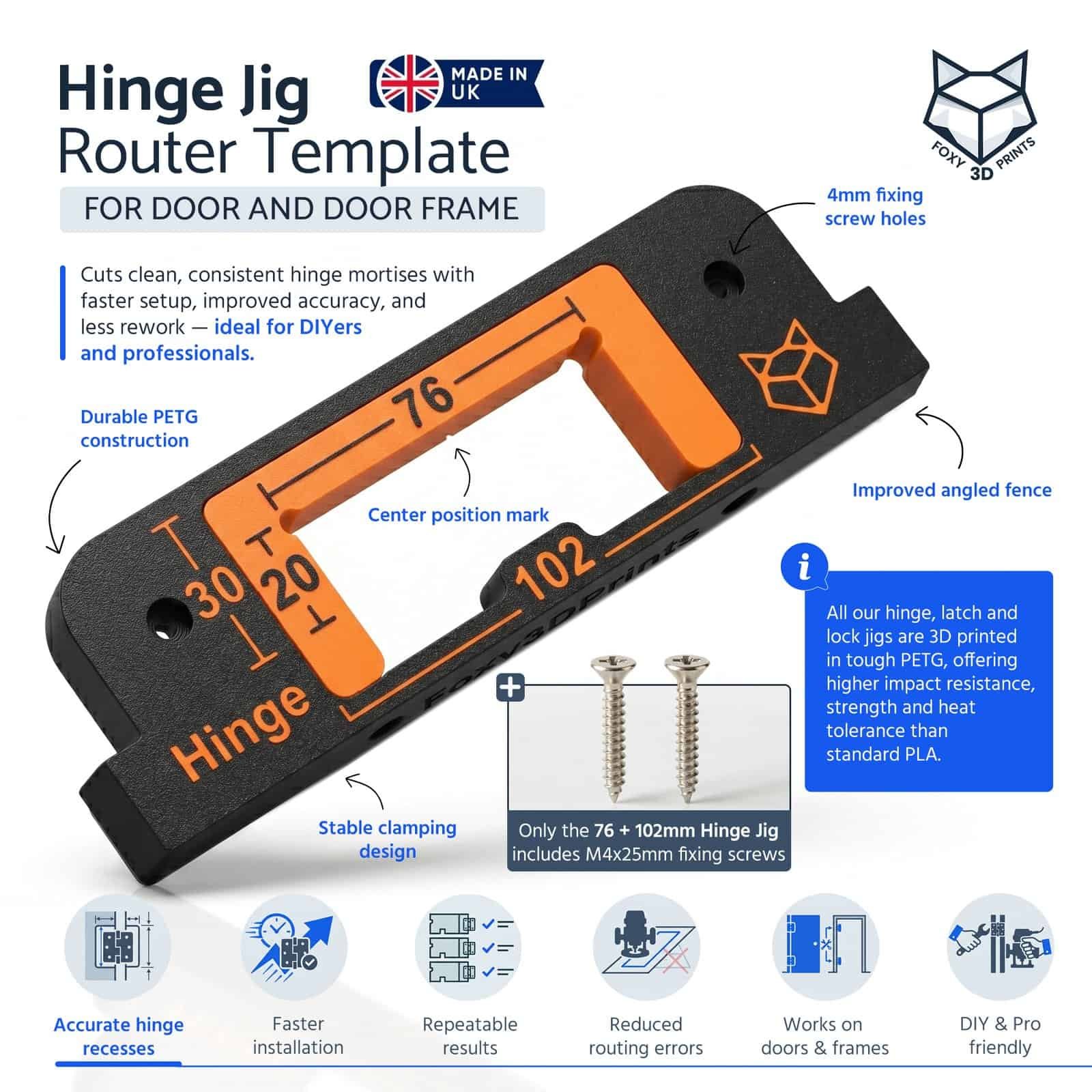

Ultimate Compatibility – Improved angled fence is optimized for clamping on doors and linings, even when doorstops and architraves are still in place. 4mm screw holes are provided as an alternative fixing method to clamps.
Cutting-Edge 3D Printing Technology – Designed and manufactured in the UK using tough PETG plastic and tuned print settings for maximum strength and durability.

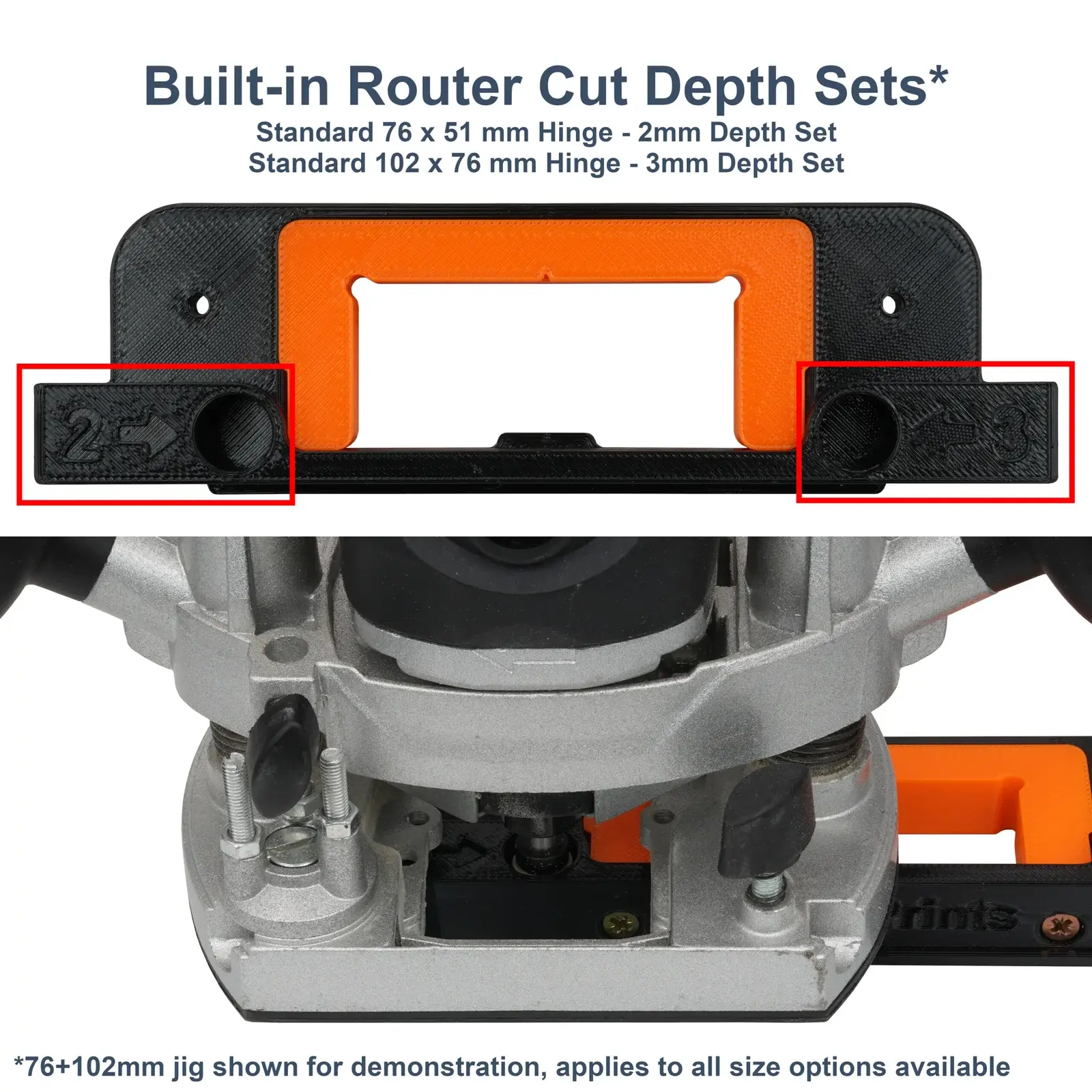

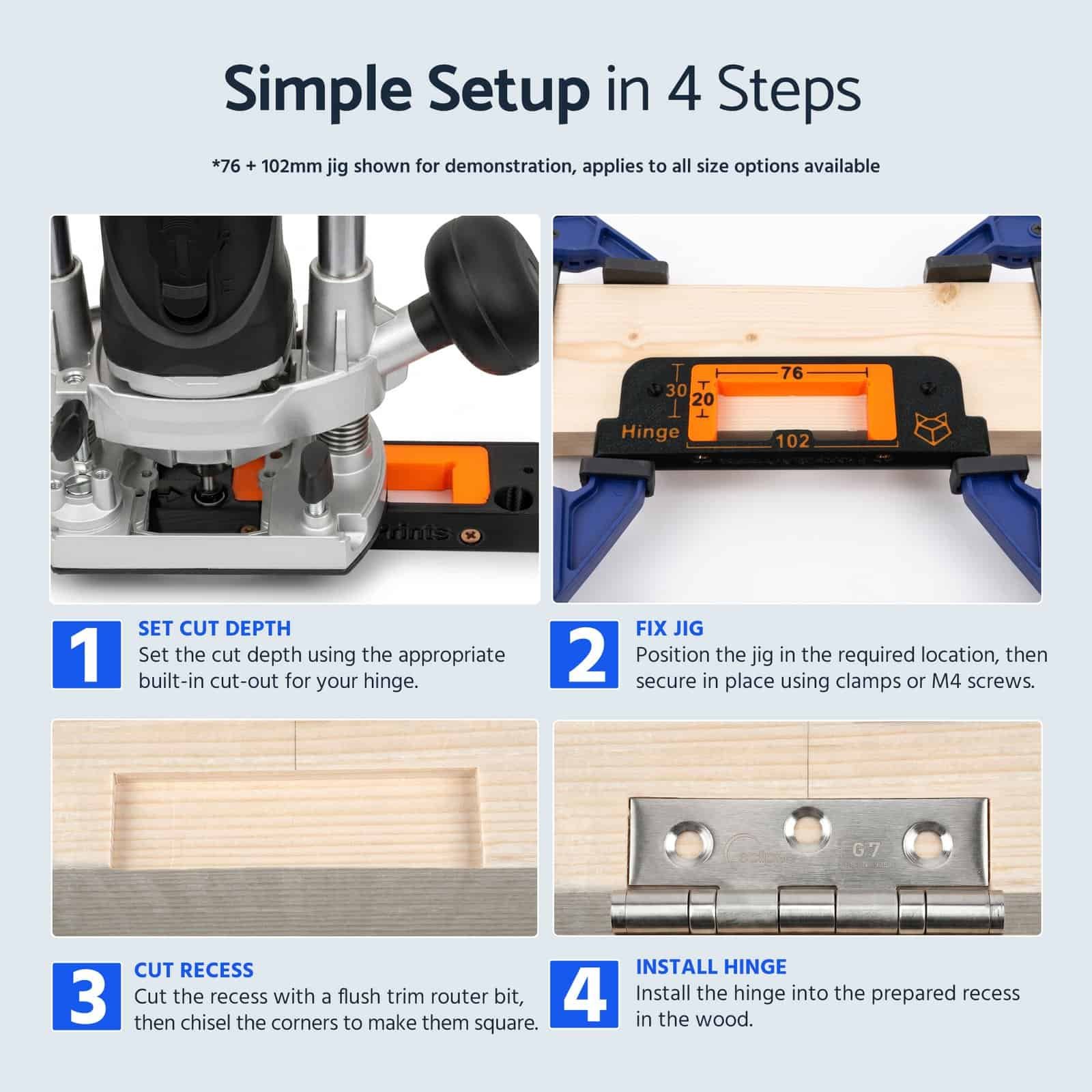

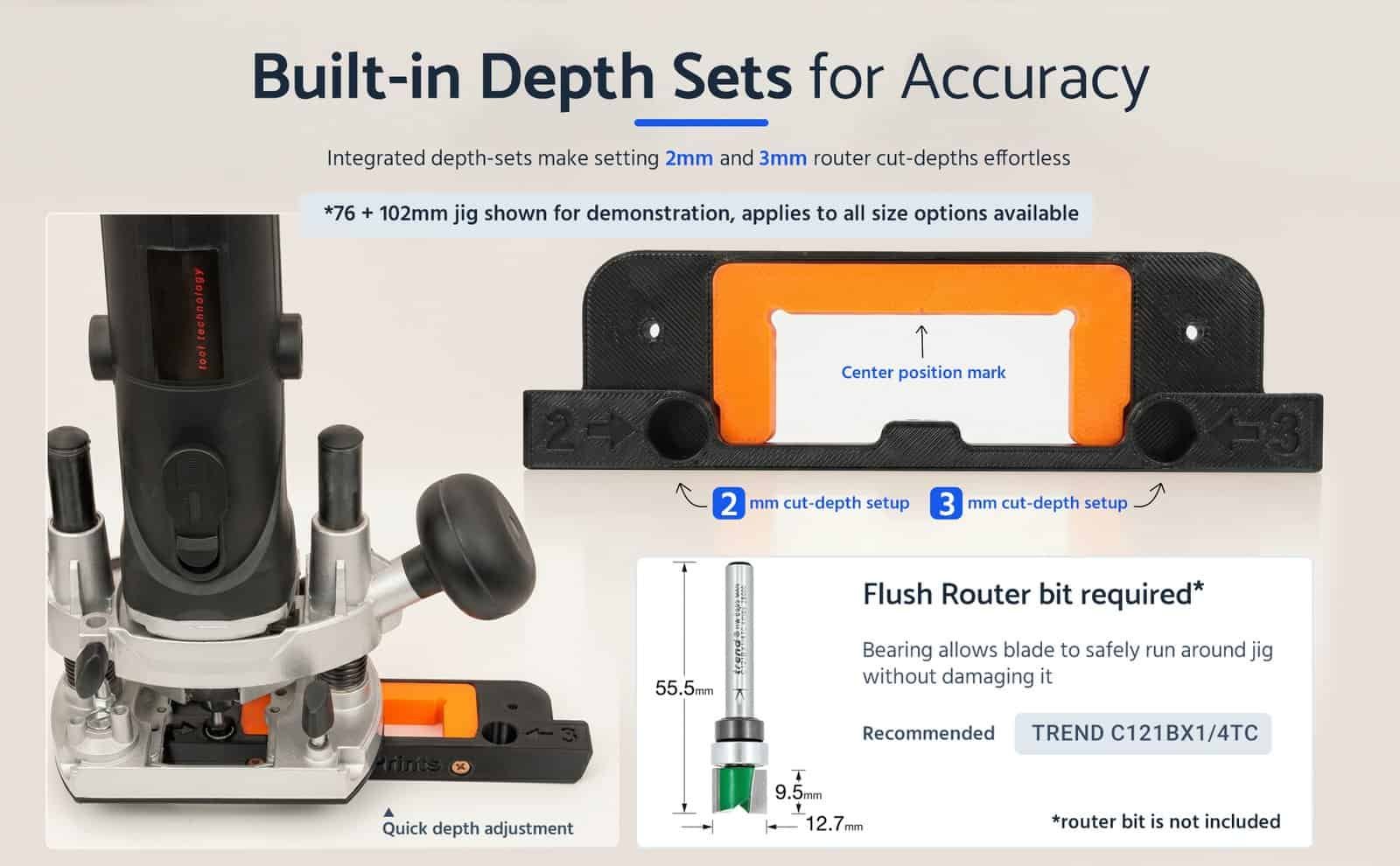

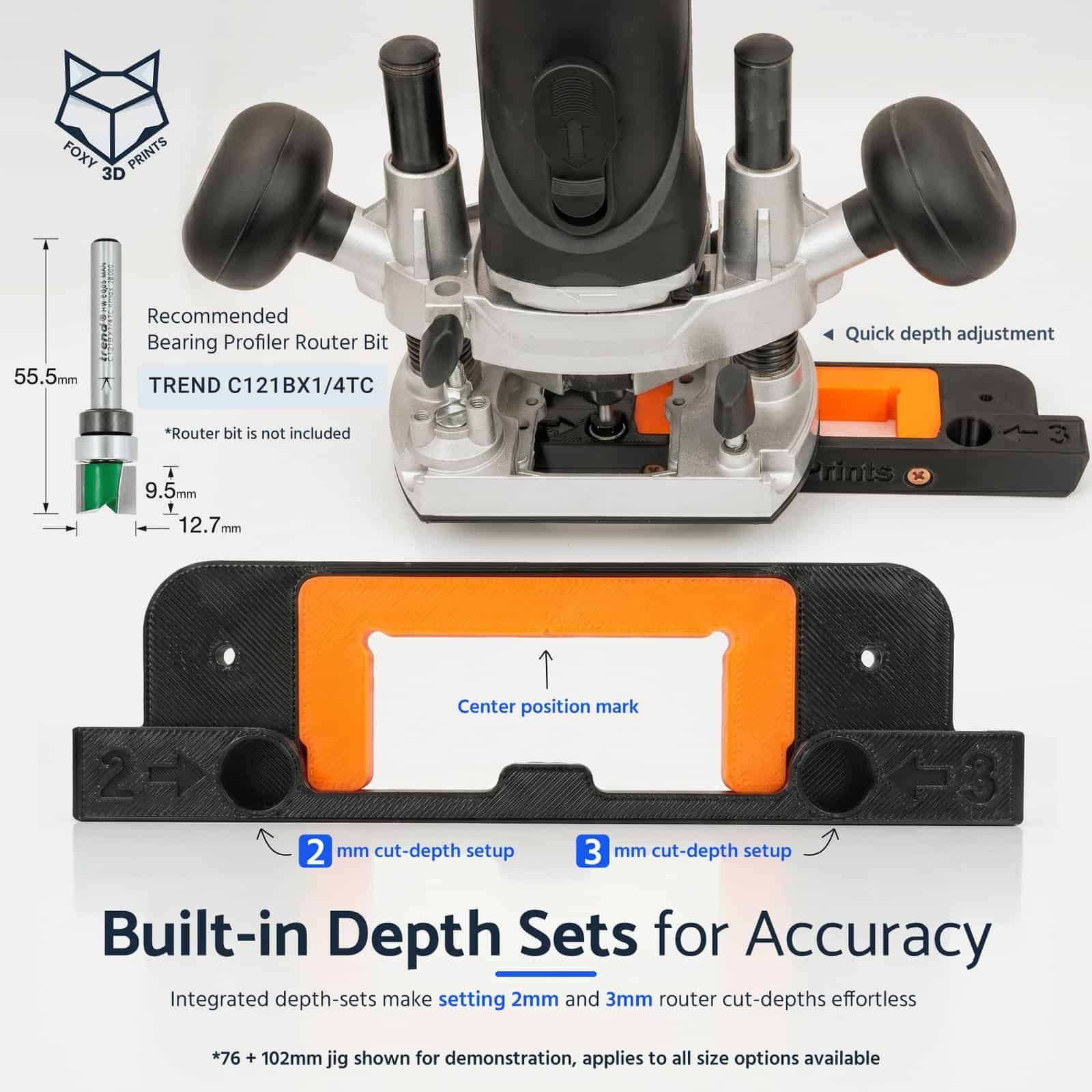

Simple Setup – Integrated depth-sets make setting 2mm and 3mm router cut-depths effortless. A centre mark built into the jig makes accurate positioning quick and easy.

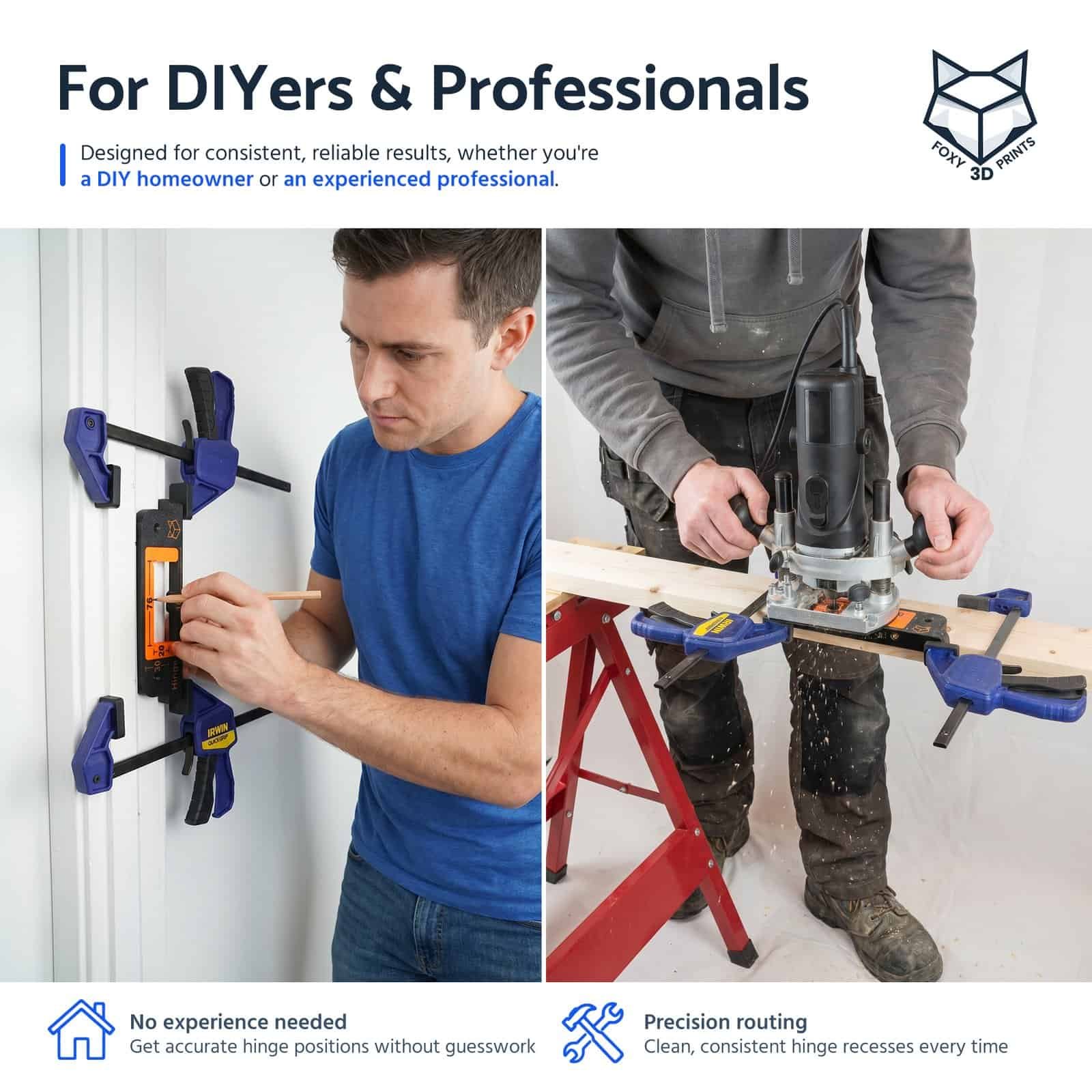

Built to Last – The compact, lightweight and robust design is easy to store, making it ideal for both DIYers and professionals.

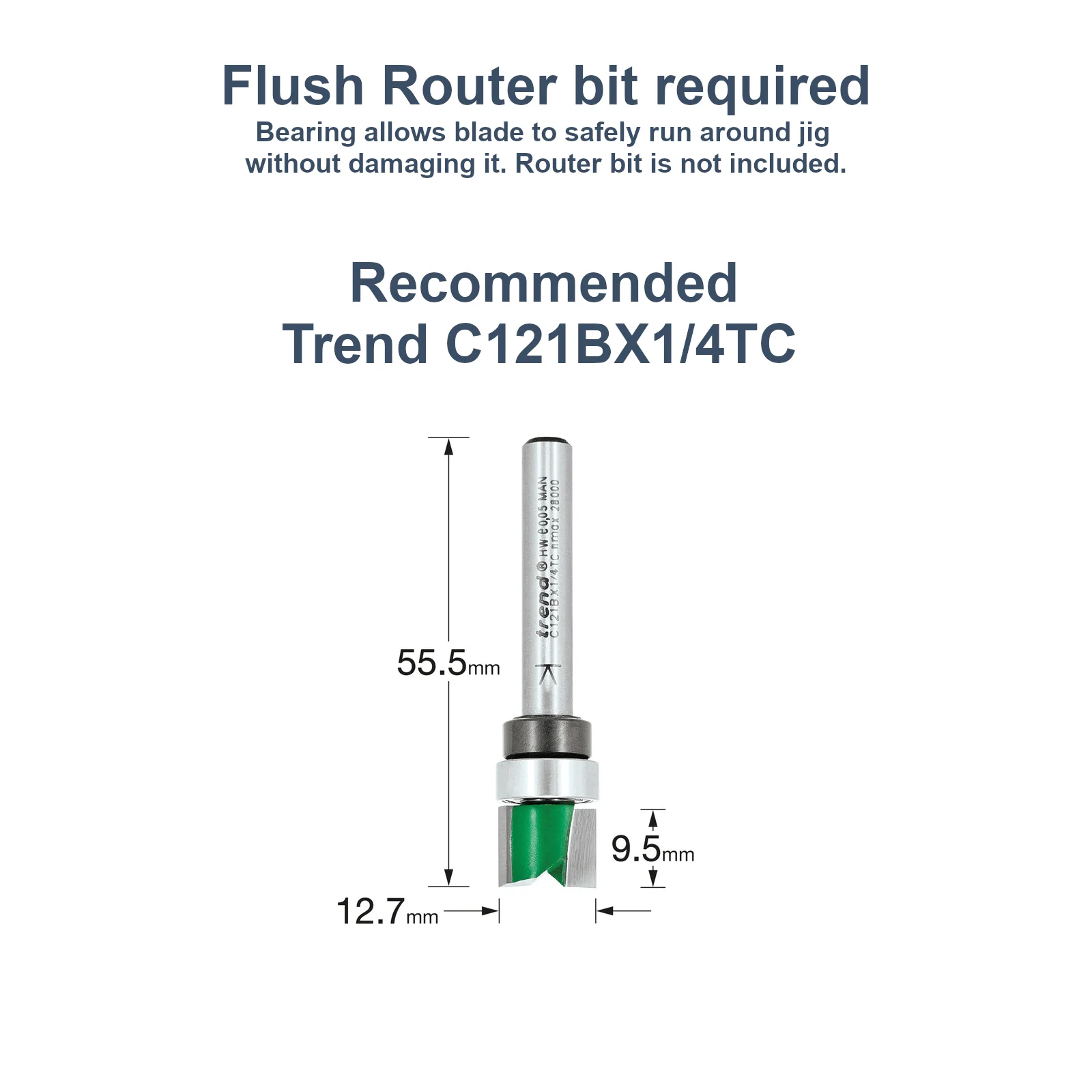

Bearing Profiler Router Bit Required – Designed to be used with any guided template bearing profiler router bit up to 14mm in diameter. Trend C121BX1/4TC is recommended for optimum compatibility and performance.
