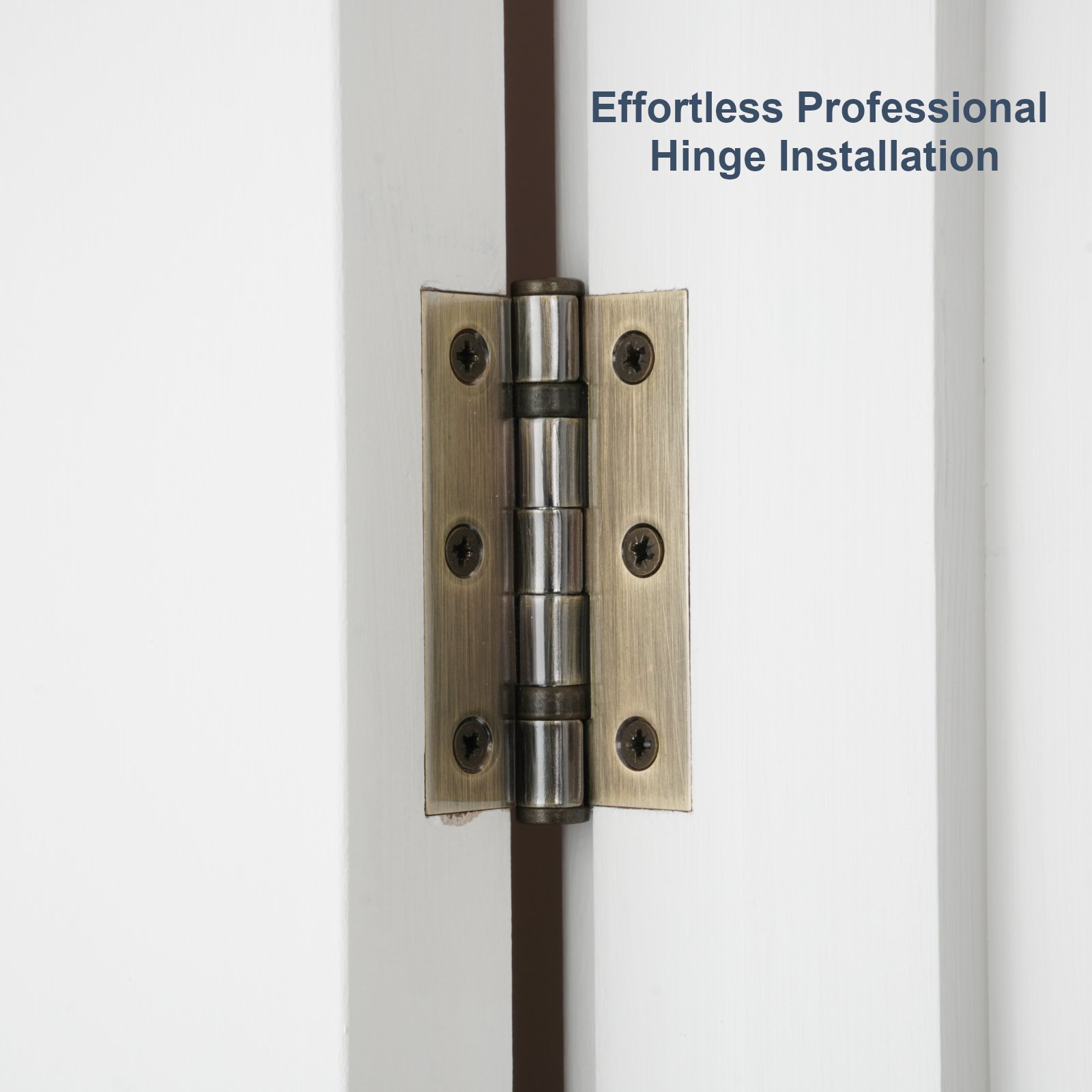

In the Box

Included with each hinge size ordered:

• One black slimline basic hinge jig

Options

Size

• 76 x 51 mm – For UK standard 76 x 51 mm (3 inch) hinges, recess size 76mm x 19mm
• 102 x 76 mm – For UK standard 102 x 76 mm (4 inch) hinges, recess size 102mm x 30mm
• 76 x 51 mm + 102 x 76 mm – Includes both sizes listed above

These jigs can be quickly scaled to fit any size hinge, please contact me if you require a size that is not listed

Jig Usage

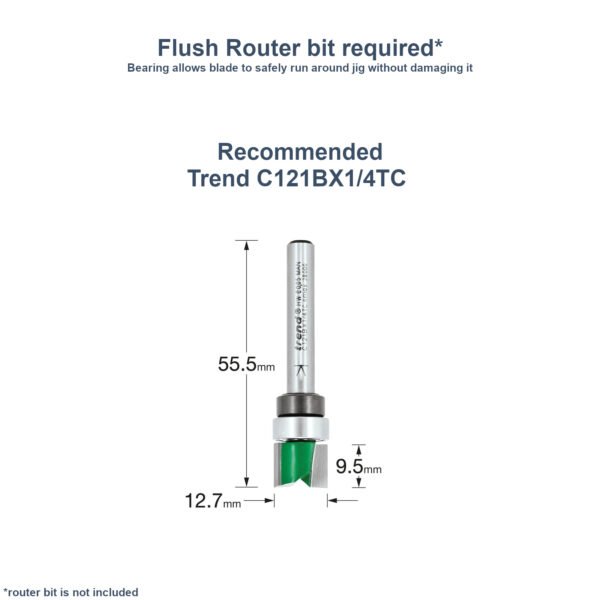

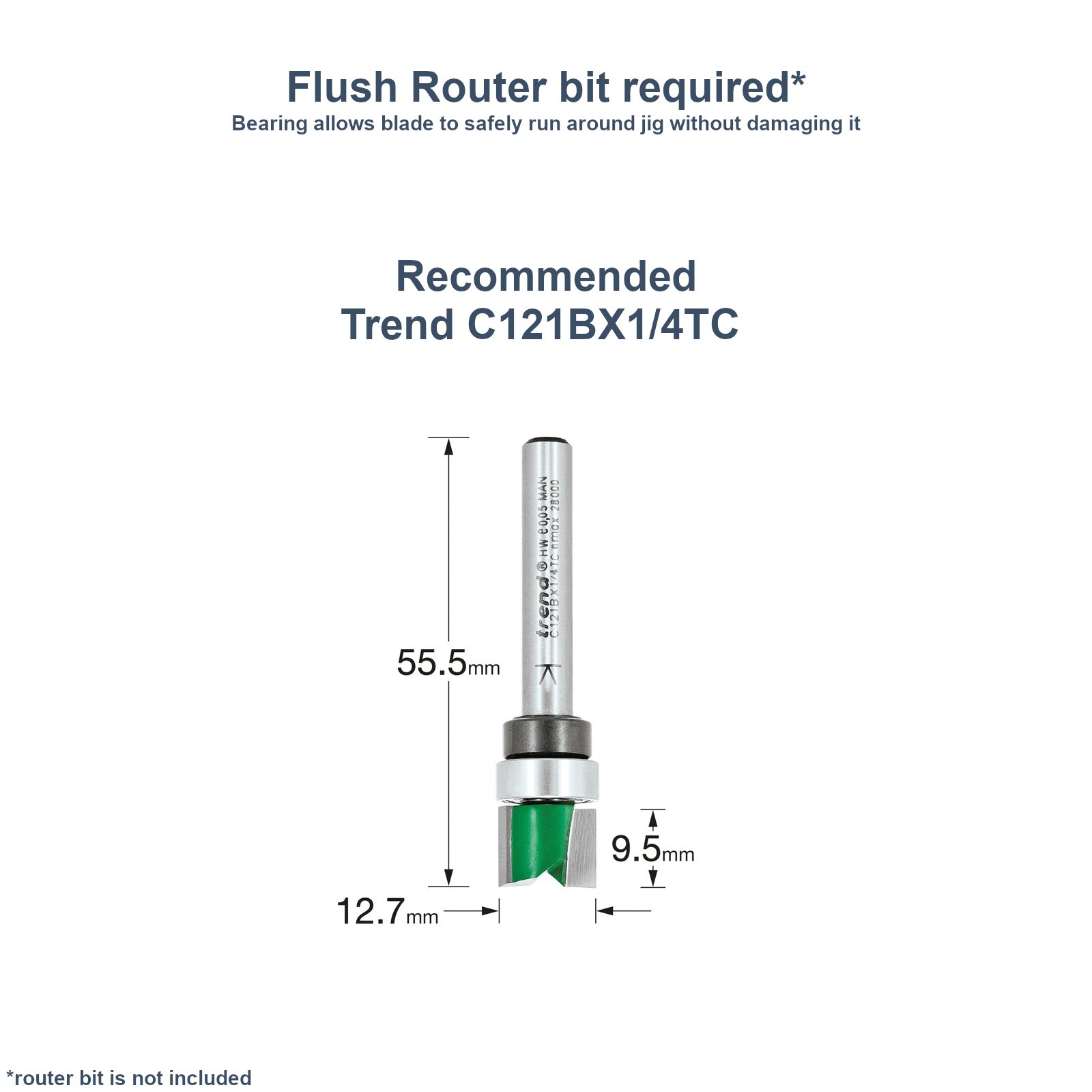

Designed to be used with a guided template profiler router bit up to 15mm in diameter. This sort of bit has a bearing that allows the blade to run around the guide without cutting it, I recommend the Trend 1/4″ 12.7mm x 9.5mm C121BX1/4TC (Toolstation code 41051). The router bit is not included.

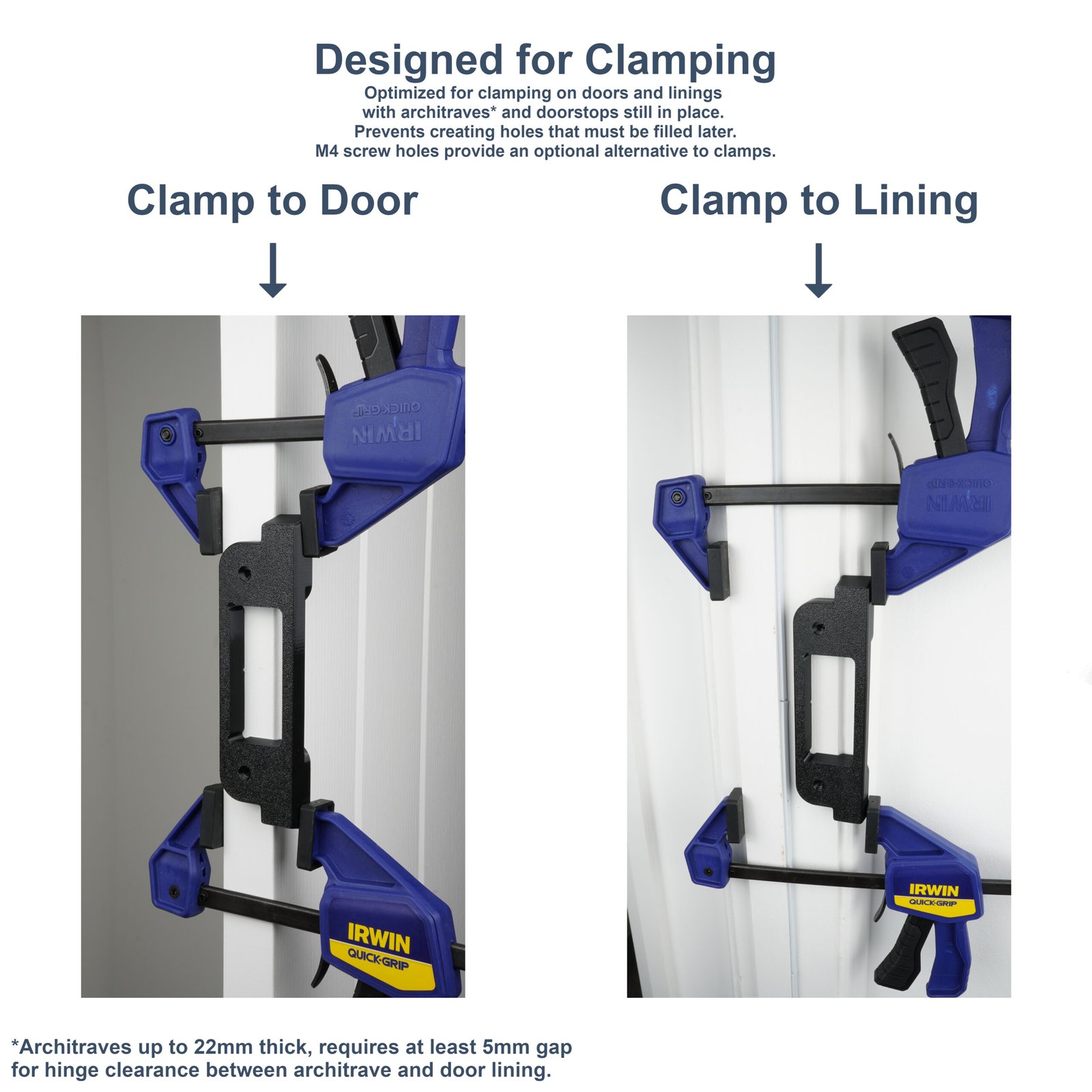

Once the depth has been set, secure the jig on your door or door frame in the correct location. Position the router carefully within the jig before switching it on. Once the cut has been made, ensure the router has fully stopped before removing it from the jig. These steps will help prevent accidental damage to the jig.

I recommend you trial the above steps on a spare piece of wood first to make sure you have set the depth correctly and the jig is compatible with your hinge.

Note

Exact colour may vary subject to filament availability. Some small visual imperfections is normal for additive manufacturing, strength and function is not effected.
