Made to Order All Sizes/Models Hinge Jig Router Template for Door and Door Frame

Price range: £13.99 through £24.99

  • Effortless Repeatable Professional Finish – Provides a quick, simple solution for fitting any sized hinge (dimensions provided by customer).
  • Ultimate Compatibility – Optimized for clamping on doors and linings, even when doorstops and architraves are still in place (slimline models only). 4mm screw holes are provided as an alternative fixing method to clamps.
  • Cutting-Edge 3D Printing Technology – Designed and manufactured in the UK using tough PETG plastic and tuned print settings for maximum strength and durability.
  • User Friendly – Clearance cut-outs allow access for chiselling out corners with the jig still in place. Built-in screw storage means you always have an alternative fixing method available and multiple jigs can be attached to a wooden batten to fix spacing between hinges on door and lining (not included for slimline basic model).
  • Simple Setup – A centre mark built into the jig makes accurate positioning quick and easy. Integrated cut-outs make setting the standard router depths effortless (not included for slimline basic model).
  • Built to Last – The compact,  lightweight and robust design is easy to store, making it ideal for both DIYers and professionals.

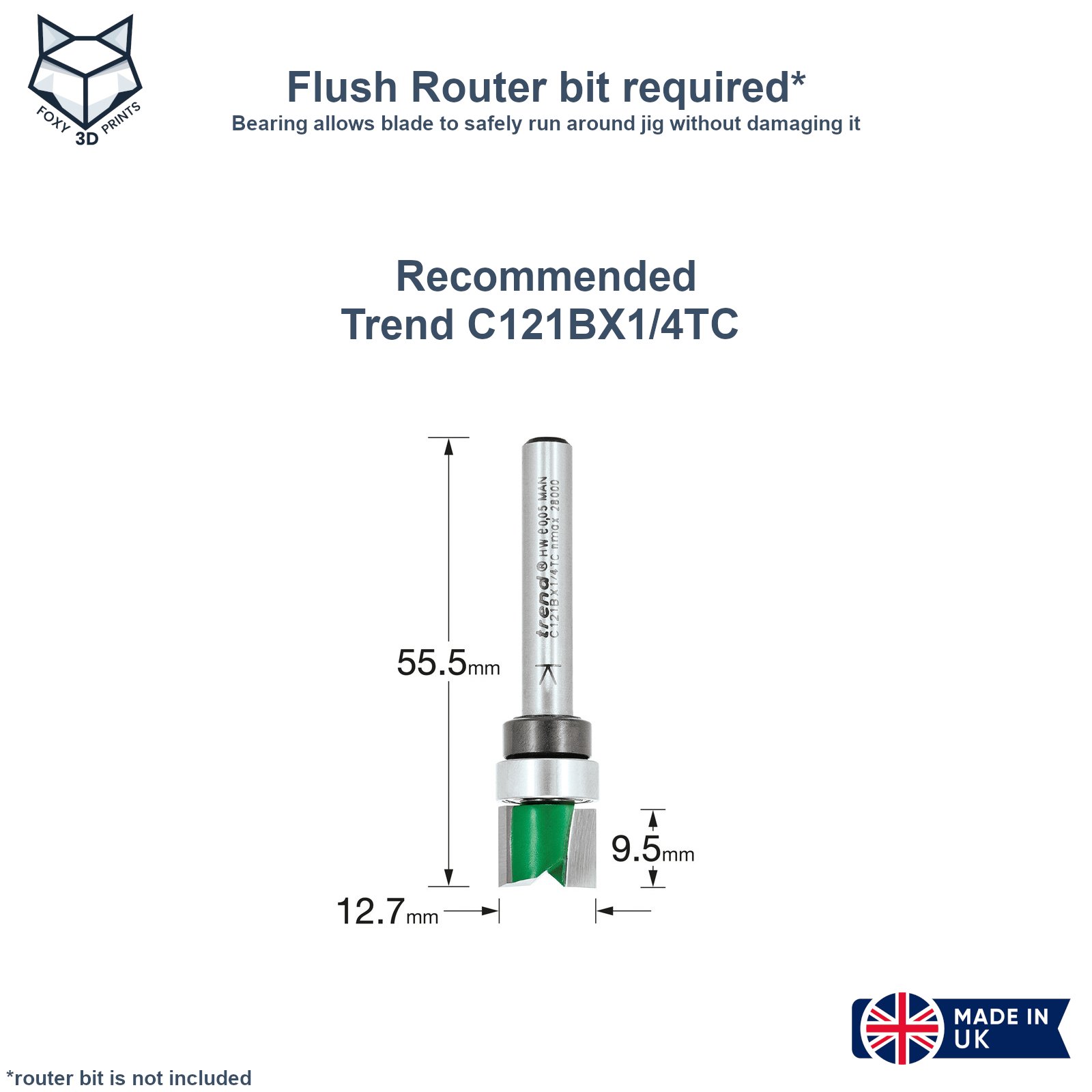

  • Bearing Profiler Router Bit Required – Designed to be used with any guided template bearing profiler router bit up to 15mm in diameter. Trend C121BX1/4TC is recommended for optimum compatibility and performance.
SKU: N/A Category: Brand:

Important Note

This listing is a custom designed and manufactured product made to order, the photos are displaying example jigs. Please ensure you carefully measure your hinge as accurately as possible as no returns are accepted for user error while taking measurements. I recommend using an accurate Vernier calliper. A small tolerance will be added to each measurement to offset tolerances and shrinkage during cooling and ensure compatibility, this may result in jigs being up to 0.3mm larger than specified. The product video shows the slimline and standard model usage, the slimline basic is the same as the slimline except without the storage hook, screw storage and built-in depth set.

In the Box

Included with each slimline basic hinge size ordered:
  • One black hinge jig
Included with each slimline hinge size ordered:
  • One two-tone coloured slimline hinge jig
  • One matching storage hook
  • Integrated cut-out to easily set the hinge depth (depth required must be provided by customer in order notes)
  • Two M4x25mm screws stored safely inside the jig for use as a clamping alternative
  • Two M3.5x15mm screws for the hook
Included with each standard hinge size ordered:
  • One two-tone coloured standard hinge jig
  • One matching storage hook
  • Integrated cut-out to easily set the hinge depth (depth required must be provided by customer in order notes)
  • Two M4x25mm screws stored safely inside the jig for use as a clamping alternative
  • Two M3.5x15mm screws for the hook
Included with each slimline + standard hinge size ordered:
  • One two-tone coloured slimline hinge jig
  • One two-tone coloured standard hinge jig
  • One matching storage hook
  • Integrated cut-out to easily set the hinge depth (depth required must be provided by customer in order notes)
  • Four M4x25mm screws stored safely inside the jigs for use as a clamping alternative
  • Two M3.5x15mm screws for the hook

Jig Usage

Designed to be used with a guided template profiler router bit up to 15mm in diameter. This sort of bit has a bearing that allows the blade to run around the guide without cutting it, I recommend the Trend 1/4″ 12.7mm x 9.5mm C121BX1/4TC (Toolstation code 41051). The router bit is not included.

To quickly set the router depth using the integrated cut-out:

  • Check the your hinge matches the thickness in mm given on the jig near the arrows
  • This will be the recess depth, do not proceed with these steps if it does not closely match
  • Turn the jig upside down with the colour facing upwards
  • Place your cutter over the cut-out (between the two arrows)
  • Push the cutter as far as it will go into the cut-out then secure the blade at this depth
  • You have now set your cutter depth and are ready to recess your hinge

Once the depth has been set, secure the jig on your door or door frame in the correct location. Position the router carefully within the jig before switching it on. Once the cut has been made, ensure the router has fully stopped before removing it from the jig. These steps will help prevent accidental damage to the jig.

I recommend you trial the above steps on a spare piece of wood first to make sure you have set the depth correctly and the jig is compatible with your hinge.

Note

Exact colour may vary subject to filament availability. Some small visual imperfections is normal for additive manufacturing, strength and function is not effected.

Weight 400 g
Dimensions 300 × 250 × 40 mm
Jig Model

Slimline Basic, Slimline, Standard, Slimline + Standard

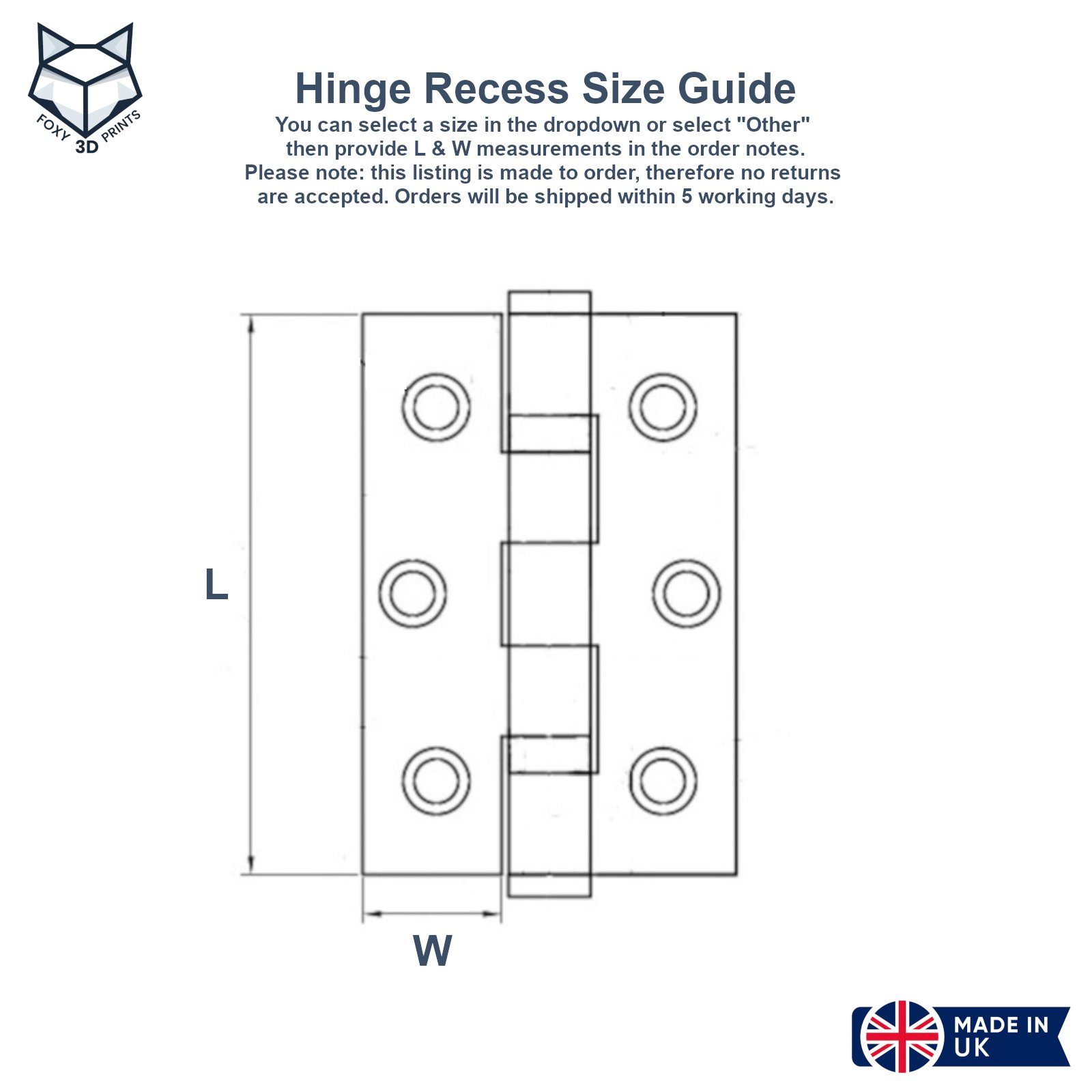

Hinge Recess Size (L x W)

102 x 31 mm, 102 x 30 mm, 102 x 29.5 mm, 102 x 27.5 mm, 102 x 26 mm, 101 x 31 mm, 100 x 37.5 mm, 100 x 31.5 mm, 100 x 30.5 mm, 100 x 26 mm, 89 x 23 mm, 77 x 19.5 mm, 76 x 22 mm, 76 x 21 mm, 76 x 20 mm, 76 x 19 mm, 76 x 16.5 mm, 75 x 26 mm, 75 x 22 mm, 75 x 21 mm, 75 x 19 mm, 75 x 18 mm, 74 x 20 mm, 66 x 20 mm, 64 x 14.5 mm, 50 x 14.5 mm, Other (Add L & W Measurements to Order Notes)
Colour

Black, Black-Blue, Black-Orange
